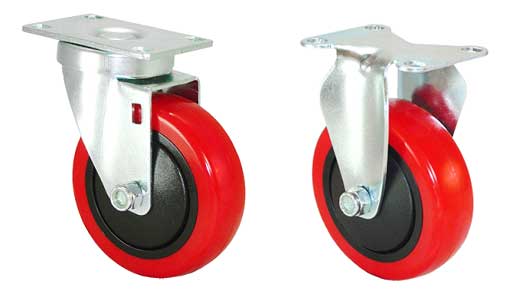

24 Series: For 1-1/4 inch Wide Wheels

NSF certified light-medium duty casters with up to 400 lb capacity. Available in 3", 3.5", 4", 5", & 6" wheel diameters with 1-1/4" tread width. Overall heights range from 4-3/16" to 7-1/8". Caster yoke features double ball bearing raceway, steel dust cover to protect swivel raceway, heavy gauge cold rolled steel, 1/2" precision kingpin, and zinc plating.

These casters are recommended for bakeries and food services, stocking carts, dollies, institutional equipment, and laboratory carts.

Top Plate 2-3/8 x 3-5/8" (Bolt Pattern: 1-3/4 x 2-7/8 to 3"; Bolt Hole: 5/16"

Top Plate 3-1/8 x 4-1/8" (Bolt Pattern: 1-3/4 x 2-15/16 to 2-3/8 x 3-3/8; Bolt Hole: 5/16")
